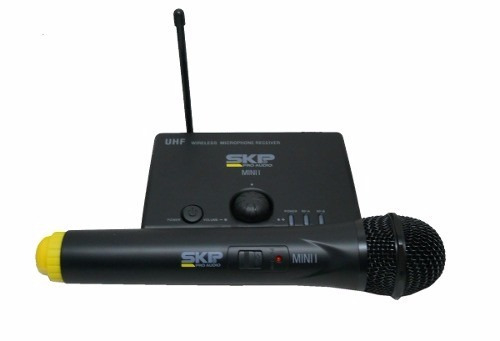

SKP MINI-I

Descripción

Microfono inalambrico de mano / sistema UHF / alto rendimiento / capsula dinamica / cable TS TS incluido





DESCRIPTION



UHF WIRELESS MICROPHONES







CHARACTERISTICS



In the MINI line, SKP renews the UHF wireless systems series with SMT technologies doing a compact system with smaller receptors specially designed to be use and carried conveniently to any space and provide secure transmission off-interferences with use highest frequencies. Handheld, headset and lavalier systems.







TECNICAL SPECIFICATIONS



HANDING MICROPHONE:



Carrier frequency: UHF 600-900MHz



Dynamic range: > 90dB



Total harmonic distortion: < 0.5%



Frequency response: 40Hz-15KHz± 3dB



Audio output level: 0--± 400mV



FIXED RECEIVER:



Power supply: DC 17V



Consume power: 4W



Signal/noise ratio: > 90dB



Image & spurious rejection: > 80dB



Border upon channel rejection: > 80dB



Receiving sensitivity: 10dBuV(SINAD=30dB)



De-emphasis: 50uS



HANDING MICROPHONE:



Transmitter power: 30mW(Max)



Max deviation: ± 25KHz



Spurious emission: > 40dB(WITH CARRIER)



Battery voltage: 1.5V AA Battery x 2



Continuous using: 4 hours



BODY-PACK:



Transmitter power: 30mW(Max)



Modulation type: FM,F3F



Max deviation: ± 25KHz



Spurious emission: > 40dB(WITH CARRIER)



Battery voltage: 1.5V AA Battery x 2



Continuous using: 4 hours
